USB AVR Handheld Programmer

Kanda - AVR Battery Powered Handheld Programmer for Mobile and Portable AVR ISP
  • Standalone AVR programmer with one button operation
  • Programmer only, see HH0110 for version with PC loader
  • Battery powered, or with optional power supply
  • ISP and TPI programming or JTAG (optional adapter)
  • Can power target or target can be powered
  • Version 3 is suggested for new users.
Shipping to United States
Recorded Airmail: $15.00
Fedex Express: $29.00
Order Code
HH0120
Price: $185.00
In Stock



Related Products








Product DetailsTop of Page

Hand Held AVR Programmer for AVR ISP


Still available for existing users.

For ATxmega and AVR D Series support, UPDI programming and 512KB memory, see HH0120V3

Version 3 is recommended for new users

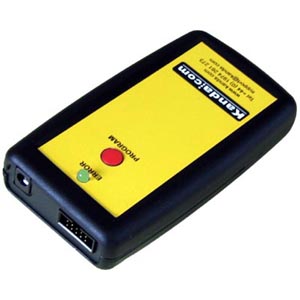

Battery powered mobile handheld AVR Programmer, for field and production use, for AVR microcontrollers with up to 256KB of code and Data memory. Plug it into your target board and program/verify Flash and/or EEPROM, Fuses and Lockbits with a single button press.

This mobile AVR programmer uses AVR ISP or JTAG and is ideal for non-technical operatives as it stops mistakes - press the only button and the correct code MUST be loaded. Clear pass and fail codes.

Important Note - Please Read


This product is just the handheld programmer without PC loader
You need one AVR Handheld Programmer Starter Kit to load as many programmers as you like from the PC. Once the programmer is loaded it is completely portable.

Features


  • AVR Mobile Programmer is battery powered with 9V PP3 battery or can be used with 9V power supply
  • 256KB of storage space for target AVR code and EEPROM data
  • Single button press to program target AVR microcontroller
  • Load portable programmer code using simple Wizard Software
  • Reload new programs as often as required
  • Once loaded, it holds program code indefinitely
  • Supports all AVR Fuse and Lock bits
  • Edit fuses on screens, in hex, or in binary
  • Supports Atmel ELF production files, including fuses and lock bits
  • Program Fuses First feature increases programming speed on new AVRs with 1MHz clock
  • Program and Verify Flash or EEPROM or both
  • Can program target from 1.8V - 5.5V, depending on target AVR voltage range
  • Able to power target AVR microcontroller (up to 150mA) or target can be powered
  • Save all settings (fuses, filenames etc) to a file for easy distribution of setup
  • Error indication with red/green LED
  • Dimensions: Imperial - 4.5 x 2.5 x 1 inches
  • Dimensions: Metric- 106mm x 58mm x 25mm
  • For 10DIL6, JTAG, Flying lead and other adapters, see Product Accessories below
  • For ATxmega support and UPDI, see Version 3 - HH0120V3

Windows OS


The loader for this mobile AVR programmer works in Windows 2000, XP, Vista, Win7, Win8, Win10 and Win11, 32 and 64-bit versions.

Android App

Save programmer contents to a PRG file, send it to an Android device and programmer can simply be reloaded with new contents. This gives you much greater flexibility.

More Details, Video and App Download

AVR ISP Microcontroller Support


Supports all L, P, PA, V, A AVR Devices as well
  • Older AVR: AT90S1200, AT90S2313, AT90S2323, AT990S2333, AT90S2343
  • AT90S4414, AT90S4433, AT90S8515,AT90S8535, ATmega103
  • AT90CAN128, AT90CAN32, AT90CAN64
  • AT90PWM2/3, AT90PWM316
  • AT90USB1286, AT90USB646
  • ATmega128, ATmega1280, ATmega1281, ATmega1284, ATmega128RFA1
  • ATmega16, ATmega161, ATmega162, ATmega163, ATmega164, ATmega165, ATmega168, ATmega169
  • ATmega16M1, ATmega16U2, ATmega16U4
  • ATmega2560, ATmega2561 (255KB flash memory space available)
  • ATmega32, ATmega323, ATmega324, ATmega325, ATmega3250, ATmega328, ATmega329
  • ATmega3290, ATmega32C1, ATmega32M1, ATmega32U2, ATmega32U4, ATmega32U6
  • ATmega48, ATmega64, ATmega640, ATmega644, ATmega645, ATmega6450, ATmega649
  • ATmega6490, ATmega64C1, ATmega64M1
  • ATmega8, ATmega8515, ATmega8535, ATmega88, ATmega8U2
  • ATtiny13, ATtiny1634, ATtiny167
  • ATtiny2313, ATtiny24, ATtiny25, ATtiny26, ATtiny261
  • ATtiny4313, ATtiny43U, ATtiny44, ATtiny45, ATtiny461, ATtiny48
  • ATtiny84, ATtiny85, ATtiny861, ATtiny87, ATtiny88
  • ATtiny441, ATtiny841
  • All P (PicoPower), PA, PB, V, L and A AVR microcontrollers are supported.

ATtiny TPI Support

ATtiny10, ATtiny102, ATtiny104, ATtiny20, ATtiny4, ATtiny40, ATtiny5, ATtiny9
Older Programmers do not support TPI.. Programmers manufactured before March 2017 cannot support TPI.

JTAG Support for AVR microcontrollers with JTAG interface - adapter not supplied, see product accessories.

For ATxmega PDI programming support, UPDI interface and 512KB memory for ATmega2561, see HH0120V3

Adapters and Power Supply Requirements


A power supply can be used instead of the internal 9V PP3 battery. The power supply required is 9V, 300mA minimum, 2.1mm Barrel connector, centre positive. These are available on the shop.
9V International Power supply for use with this programmer.

Available adapters

We now have adapters to convert from the standard Kanda 10-way AVR ISP lead to different 6-way headers and different pitch - 1.27mm or 2.0mm.
Full List of Available Adapters

Here are some popular adapters.

6-Way DIL adapter

6 x 1-way leads

6-Way Micromatch connector

1.27mm Adapter

JTAG Interface
See JTAG Adapter for ready made JTAG adapter

See JTAG Pinouts PDF file for details of pin wiring.

Custom Adapters
If you need any other type of connector, we can supply all sorts of custom adapters - see Custom Connectors

Other Information


A Quick start guide with recommended circuits and setup details can be downloaded here.

Overview of Kanda AVR Programmer Range

This handheld AVR programmer should be used with recommended AVR ISP circuits.
See Guide to AVR ISP Circuits for schematics of recommended AVR ISP circuits (new window).

This is a single handheld programmer to store one program.
See 8-Way Version 3 for programmer to store up to 8 programs.

You need a starter kit first


You will need a Starter Kit to load this portable AVR programmer. One Starter Kit will allow you to load as many programmers as you want. The Starter kit comes complete with one hand held AVR Programmer and is on Special Offer.
