COM port Redirector for Serial Device Servers

All our Sena Serial Device Servers come with fully licensed COM Port Redirector software that creates Virtual COM Ports (VCP). This allows every one to continue to use their existing application programs that use COM ports. The Serial-IP Redirector runs on your PC and creates virtual COM ports that allow PC applications to access serial ports on TCP/IP networks as if they were local serial ports.


Popular Products


Serial Device Server
Sena LS100 serial device server picture

Sena serial to Ethernet converter. Connect serial port products to your network


PS110 Device Server
Sena PS110 serial device server picture

Sena serial to Ethernet converter. Connect serial port products to your network


This page is not suitable for mobile viewing.
The COMport Redirector software runs at the kernel level to give superior performance and low latency.

  • Virtual COM Port for Windows
  • TTYredirector for Linux/Unix
  • Related Products

Overview


The Serial/IP COM Port Redirector creates virtual COM ports that allow applications to use networked serial servers as though they were local serial ports. This means that no changes are needed to your application software as you just access a virtual serial port.

VCP Standard Features

  • Control Panel interface, activity monitor, and trace display
  • Supports virtual COM ports filtering in the Trace window
  • Creates up to 4,096 virtual COM ports
  • Easily select a large number of virtual COM ports
  • Configuration Wizard automates and verifies settings
  • Copies a port configuration to any number of other virtual COM ports
  • Automated login to Sena device/terminal servers
  • Runs as a Windows service, so no Windows login required
  • Administrator install option prevents changes by users
  • Control Panel settings for DTR/DSR/DCD handling
  • Supports RFC 2217, Telnet COM Port Control Protocol
    More Information on RFC-2217

SSL/TLS Security Option


  • Encrypts TCP/IP connection data
  • Selectable ciphers and strengths, up to 256-bit AES
  • Provides and validates SSL certificates
  • Requires server support for SSL/TLS encryption

Requirements

  • Intel-compatible PC, 32-bit or 64-bit (x64) processor
  • Windows operating system: 7, Vista, XP, 2000, NT 4, Me, 98, NT/2000 Terminal Server, Citrix MetaFrame

Using networked serial ports in three easy steps


  • The Serial/IP Redirector creates virtual COM ports for selected ports from COM1 to COM4,096. Existing COM ports are automatically excluded.
  • Run the Serial/IP Control Panel where each Virtual COM port can be separately configured to use a particular Sena device server.
  • Run your application software as usual

For detailed information, please refer to Tactical Software's web site at:
http://www.tacticalsoftware.com/

Comm Port Redirector User Guide (1MB PDF)

Linux Overview


SENA provides the TTYredirector by Tactical Software(www.tacticalsoftware.com) with all their serial device servers, embedded device servers and terminal servers. This is a COM Port Redirector for Linux x86, including Red Hat Enterprise Linux, Fedora Core, SUSE and Debian.

TTYredirector Standard Features

  • Supports user-defined device names, automatically linked to psuedo-tty devices
  • Supports server connections with raw TCP/IP, Telnet, or enhanced Telnet (RFC 2127) protocols
    More Information on RFC-2217
  • Automated login to Sena device servers
  • Baud-rate limiting to enforce a specified data rate from TTYredirector to a remote device
  • Port close delay for port hand-off applications
  • Support Nagle algorithm control to reduce latency for short transmissions and for faster recovery from packet loss
  • Server synchronization to prevents data flow until connection to server is fully negotiated
  • Automatic reconnection to Sena device servers if the network connection is interrupted and restored
  • Employs keep-alive mechanism for faster detection of failed network connections to Sena device servers
  • Regulates flow of data to/from device server with network-level flow control
  • Initializes remote port baud rate, framing, parity, flow control, and DTR/RTS state

Requirements


  • Linux x86 on 32-bit or 64-bit Intel-compatible PC, including Red Hat Enterprise Linux, Fedora Core, SUSE, Debian
  • Unix98 pty driver (included in Linux by default)

Serial Device Server Range

All our Sena serial Device Servers come with free Tactical COMport Redirector software. This is not a short term evaluation license, it is an unlimited license.

PS110PS410P8110
  Serial Device Server     Serial Device Server     Serial Device Server
Single Port Device Server
A complete Serial Device Server for serial to Ethernet conversion, including 100Base-T Ethernet network interface, RS232/422/485 and dynamic addressing, with configuration via web, Telnet or serial interface.
Four Port Device Server
A complete multiple port Serial Device Server or serial to Ethernet converter for instant Ethernet network interfaces. Including 100Base-T, RS232/422/485 and dynamic addressing, with configuration via web, Telnet or serial interface

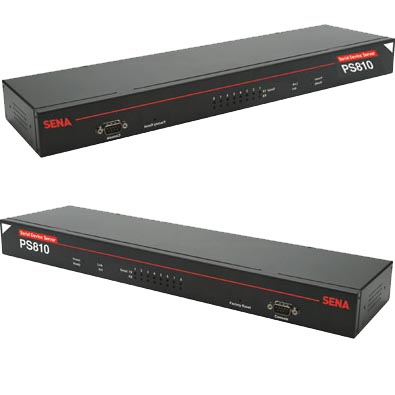

Eight Port Device Server
An eight port Serial device server or serial to Ethernet converter solution for serial to Ethernet conversion, including 100Base-T, RS232/422/485 and dynamic addressing, with configuration via web, Telnet or serial interface.
Com port redirector for serial device server Com port redirector for serial device server Com port redirector for serial device server



LS100NEMO10STS1600
  Com port redirector for serial device server     Com port redirector for serial device server     Com port redirector for serial device server
Single Port Device Server
A Serial Device Server or serial to Ethernet external interface box for connecting products with serial ports to an Ethernet network using 10Base-T network interface. Supports RS232 and a range of network protocols.
Embedded device server
with serial port for building into products that require a network interface. The Nemo10 is an embedded serial to Ethernet converter or adapter in 24-pin DIL format, 45mm x 45mm with built in UART serial port.

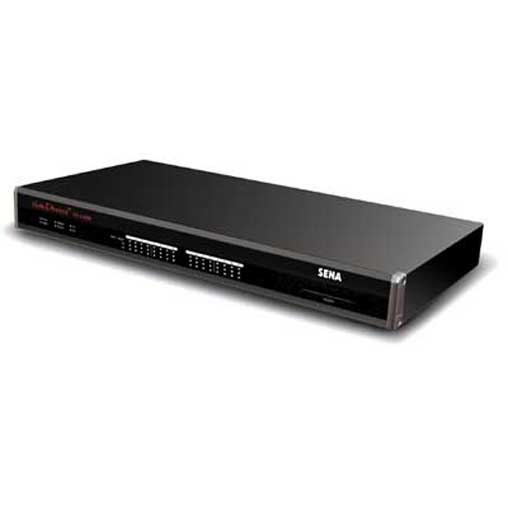

Sixteen Port Terminal Server
Ideal for connecting serial ports to Ethernet or DSL phones for various application areas like facility management including logging. They are easy to setup and have powerful security, Ethernet modem and user scripts
Com port redirector for serial device server Com port redirector for serial device server Com port redirector for serial device server
