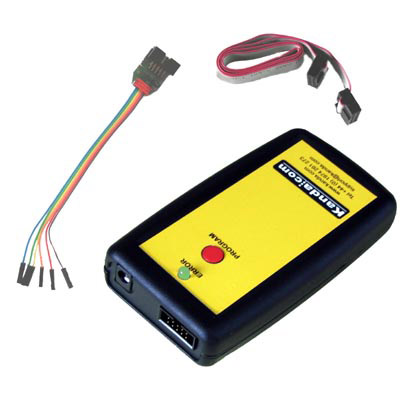

USB Handheld PIC Programmer

USB Handheld PIC Programmer for Standalone PIC Microcontroller Programming
  • Standalone PIC programmer with one button operation
  • Programmer only, see PIC-HH0110 for version with PC loader
  • Battery powered, or with optional power supply
  • ICSP programming of PIC16F and PIC18F series
  • Can power target or target can be powered
Shipping to United States
Recorded Airmail: $9.75
Express: $19.00
Order Code
Price: $139.00
In Stock

Related Products

Product DetailsTop of Page


PIC Handheld Programmer for PIC Microcontrollers

This simple PIC programmer is ideal for field programming firmware in PIC microcontrollers in the field or it can be used as a production programmer. Its single button operation prevents mistakes and reduces training needs. Once it is loaded from the PC using the USB starter kit, it can go on programming target PIC microcontrollers with no errors for ever. It is the simplest mobile programmer anywhere.

This One Botton Programmer is the simplest way to carry out field updates of embedded firmware. With no need for a laptop or PC, field programming could not be easier. Load from the PC, go to your target and press one button to update your embedded firmware - portable programming at its simplest.

It is ideal for non-technical operatives as no mistakes can be made - just press the button and the correct code MUST be loaded. You can set it to program the whole PIC microcontroller or just the Data memory (PIC16F only). It supports PIC16F and PIC18F microcontrollers.

Important note

This product is just the handheld programmer without PC loader
You need one PIC Handheld Programmer Starter Kit to load as many programmers as you like from the PC. Once the programmer is loaded it is completely portable.

Handheld PIC Programmer Features

  • Portable PIC Programmer uses 9V PP3 battery or power supply
  • Single button operation
  • Load it once, program targets for ever
  • Reload new programs whenever needed
  • Holds program code indefinitely
  • Low or High Voltage programming methods
  • 10-way DIL and 6 x 1-way flying lead included
  • Program/Verify Flash or EEPROM or both
  • Programs and Verifies Configuration words
  • Existing EEPROM data can be preserved
  • Boot Block can be preserved on PIC18FxxK devices
  • Able to power target device (up to 150mA) at 3.3V or 5V
  • Some families (PIC18FxxJ and some PIC18FxxK) are low voltage only (at time of writing) and so programmer uses 3.3V for them
  • Note: Some PIC16Fxxx devices need 4.5V minimum for chip erase, so programmer always uses 5V for these
  • Target can be powered or unpowered
  • Connections needed are PGC, PGD, MCLR and GND. VDD and PGM are optional
  • Dimensions: Metric- 106mm x 58mm x 25mm
  • Dimensions: Imperial - 4.5 x 2.5 x 1 inches
  • 256KB memory
  • Limit number of Program operations allowed, if needed

Operating Systems

Windows 2000, XP, Vista, Windows7, Windows 8, Windows 10
32 and 64-bit versions

PIC Microcontroller Support

PIC18F microcontrollers
  • PIC18Fxxxx
  • PIC18FxxJxx
  • PIC18FxxKxx (9V VPP)
  • Now Supports PIC18FxxK80, PIC18F6xK22/8xK22, PIC18FxxJ50, PIC18F6xK90/8xK90 and PIC18FxxK83
  • Supports PIC18FxxQ10
  • Also supports LF versions
FREE Updates available for new device support.

PIC12F Microcontrollers
  • PIC12F1822, PIC12F1840
  • PIC12F609, PIC12F615, PIC12F617
  • PIC12F635, PIC12F683
  • PIC12F1571, PIC12F1572
Plus LF/HV versions

PIC16F Microcontrollers
  • PIC16F610
  • PIC16F616
  • PIC16F627
  • PIC16F628
  • PIC16F627A, PIC16F628A, PIC16F648A (HVP mode programming only if Reset pin is not reprogrammed as I/O)
  • PIC16F631, PIC16F636, PIC16F639
  • PIC16F677
  • PIC16F68x, PIC16F690
  • PIC16F7x
  • PIC16F7x7
  • PIC16F72x
  • PIC16F785
  • PIC16F818
  • PIC16F819
  • PIC16F8x
  • PIC16F8xA
  • PIC16F87x
  • PIC16F873A
  • PIC16F874A
  • PIC16F876A
  • PIC16F877A
  • PIC16F88x
  • PIC16F91x
  • PIC16F946
  • PIC16F19xx
  • PIC16F15xx
  • PIC16F161x
  • PIC16F170x
  • PIC16F171x
  • PIC16F176x
  • PIC16F177x
  • PIC16F178x
  • PIC16F18xx
  • PIC16F183xx
  • PIC16F188xx
  • PIC16F153xx
  • LF versions also supported
Notes: New programmers support 9V VPP for PIC18FxxKxx and PIC16F1xxx. LVP mode is supported on PIC microcontrollers with LVP.

Not supported
  • PIC12F629
  • PIC16F630
  • PIC16F676
  • PIC16F5x
  • PIC16F505

If you do not want to use the internal 9V PP3 battery, the power supply required is 9V with a 2.1mm barrel connector, centre positive. These are available on our shop or you can use any wall transformer with these features.
9V International Power supply for use with this PIC programmer.

PIC Programmer Range

For an overview of our PIC Programmer range, please see PIC Programmer Overview in new window



This opens in a new window.

 Top of Page

Ordering Information

Ordering Information Order Code: PIC-HH0120 Price: $139.00
Shipping to United States: Recorded airmail - $9.75 Express price - $19.00
