AVR ISP MKII Programmer (ISP, Xmega, TDI)

Kanda - Waveshare AVR ISP MKII Programmer, same as Atmel ATAVRISP2, AVR Microcontrollers including XMEGA.
  • Fully integrated with AtmelStudio
  • Supports ATtiny, ATmega and ATXmega microntrollers
  • Simple plug and play USB
  • Firmware updates through AtmelStudio
  • 6, 10-way and flying lead programming cables
Shipping to United States
Recorded Airmail: $15.00
Fedex Express: $29.00
Order Code
AVRISP-MKII
Price: $46.00
In Stock



Related Products








Product DetailsTop of Page

AVRISP MKII AVR Programmer


Low cost AVR programmer for programming all AVR microcontrollers using in system programming from AVRStudio development environment(plus Atmel Studio and now Microchip Studio). The AVRISP mk2 has support for all AVR devices using serial programming (ISP) and also supports Xmega PDI interface and ATtiny TDI interface.
Atmel have stopped making their ATAVRISP2 programmer but this Waveshare version is completely compatible with the original Atmel one.

AVRISP mkII Main Features


  • Programs flash and EEPROM memories
  • Fuses and lock bit programming included
  • Firmware can be upgraded from AVRStudio
  • Supports AVRStudio 4.12 on, AtmelStudio 5,6 and 7
  • Target voltages from 1.8V to 5.5V
  • User Adjustable ISP programming speed (50Hz to 8MHz SCK frequency)
  • USB 2.0 compliant (full speed, 12Mbps)
  • USB powered, does not require external power supply
  • Includes target protection and short circuit protection
  • Compact plastic case
  • USB cable, 6-way and 10-way adapters included
  • Uses Atmel Jungo USB drivers, installed with Studio
  • Individual serial numbers

AVR Microcontroller Support


  • ATmega and ATtiny families, ISP, PDI and TPI interfaces
  • ATxmega Family - PDI
  • ATtiny with TDI programming interface
  • Does NOT support old AT90S AVR microcontrollers

This product is not manufactured by Atmel, as Atmel have stopped production of their ATAVRISP2 programmer. It is 100% compatible with the ATISPMK2 and uses Atmel Studio software and Atmel Jungo USB drivers. Atmel Studio will see it as an Atmel programmer, including the firmware updater.

Contents

  • USB AVRISP XPII
  • USB Cable
  • 6-pin cable (spare)
  • 6-pin to 10-pin ISP cable
  • 6-wire multicolour custom connector cable
  • User Guide CD

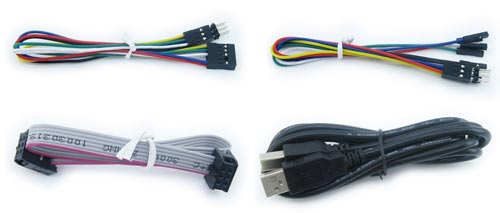

AVRISP-MKII adapters and cables

Documentation


For standalone AVR programming (without AVRStudio), more AT90S support, JTAG programming and production programmers, please see
AVR Programmer Comparison

AVR ISP Circuits for target ISP layouts and recommended circuits.

Blog Post on using AVRISP MKII with AVRDude Software
