Quick USB Module Adapter Board
Quick USB Adapter Board
A break-out board for the QuickUSB® Plug-In module. Converts the high-density 80-pin conector to two (2) 40-pin 0.1" headers AND two (2) DB-9S RS-232 connectors...
Shipping to United States
Recorded Airmail: $15.00
Fedex Express: $29.00
Order Code
QUSBAB
Price: $79.00
Discontinued
No Replacement
Product Details | |

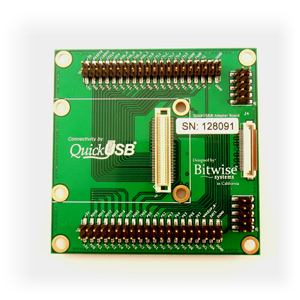

Quick USB Adapter Board
A break-out board for the QuickUSB® Plug-In module. Converts the high-density 80-pin connector to two (2) 40-pin 0.1" headers AND two (2) 10-pin 0.1" serial port headers compatible with PC serial ribbon cables.
Download
QUSB Board schematics

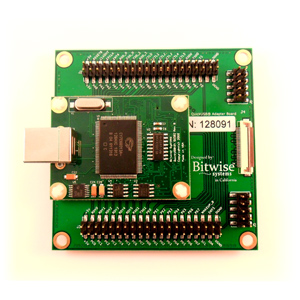

Quick USB module just plugs into the board to give you access to all pins and connections
See
Quick USB modules for details of the Quick USB converter modules themselves
Ordering Information
Ordering Information |
Order Code: QUSBAB |
Price: $79.00 |
Shipping to United States: | Recorded airmail - $15.00 | Fedex Express - $29.00 |
