PLD Training Board

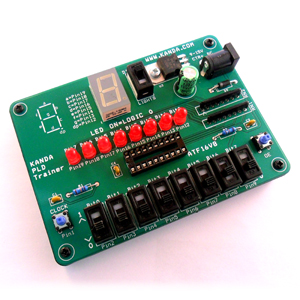

Kanda - PLD Training Board for 16V8 PLD
  • 16V8 PLD training board
  • Includes ATF16V8 PLD
  • Features switches, LEDs, 7-segment, OE and clock
  • Power regulator
  • Needs a 9V Power supply, not included
Shipping to United States
Recorded Airmail: $15.00
Fedex Express: $29.00
Order Code
PLD-BOARD
Price: $39.00
In Stock



Related Products








Product DetailsTop of Page

PLD Training Board for 16V8 PLD

Board for running 16V8 example files. Includes
  • Atmel ATF16V8 device, re-programmable thousands of times
  • Training board requires 9 VDC Power supply with 2.1mm Barrel connector, centre positive, which is NOT included.
    Suitable 9V International Power supply for use with this kit is listed below.
  • Board has 8 LEDs, 8 switches, 7-Segment display, Clock and Output Enable switches
  • Power regulator
  • 16-pin device socket - no device included, see accessories below

PLD Board Schematic

PLD Board Schematic

PLD Software

WinCUPL, available free from Microchip, is used to write PLD source code.

Download WINCUPL from Microchip Site (new window).

WinCUPL documents are here

Important

This is just a PLD board and does NOT include a programmer. See VP-299 above in related products for a suitable programmer.
