Waveshare 3.5 inch Touch LCD

Waveshare 3.5 inch Resistive Touch Screen IPS LCD for Raspberry Pi
  • Wave Share 3.5 Inch Resistive Touch IPS LCD
  • Ideal for Raspberry Pi
  • 320 x 480 resolution
  • SPI Interface
  • Raspbian/Ubuntu drivers
Shipping to United States
Recorded Airmail: $9.75
Express: $19.00
Order Code
SPI-3-5INCH
Price: $26.99
Short Lead Time



Related Products








Product DetailsTop of Page

Waveshare 3.5 Inch RPi Touch Screen LCD, resolution 320 x 480

3.5 inch Resistive Touch Screen LCD, with 320 x 480 resolution, and SPI interface. Ideal for Raspberry Pi. Waveshare SKU 12287, B version.

Features

  • 320480 high resolution, resistive touch control
  • Compatible and Direct-connect with any revision of Raspberry Pi
  • Drivers provided (works with your own Raspbian/Ubuntu directly)
  • IPS technology, high quality and perfect displaying from very wide viewing angle
  • Size perfectly fits the Pi
  • High quality immersion gold surface plating
  • Supports Raspbian system for one touch photos and software keyboard

PIN NO. SYMBOL DESCRIPTION
1, 17 3.3V Power positive (3.3V power input)
2, 4 5V Power positive (5V power input)
3, 5, 7, 8, 10, 11, 12, 13, 15, 16 NC NC
6, 9, 14, 20, 25 GND Ground
11 TP_IRQ Touch Panel interrupt, low level
18 LCD_RS Instruction/Data Register selection
19 TP_SI SPI data input of Touch Panel
21 TP_SO SPI data output of Touch Panel
22 RST Reset
23 TP_SCK SPI clock of Touch Panel
24 LCD_CS LCD chip selection, low active
26 TP_CS Touch Panel chip selection, low active

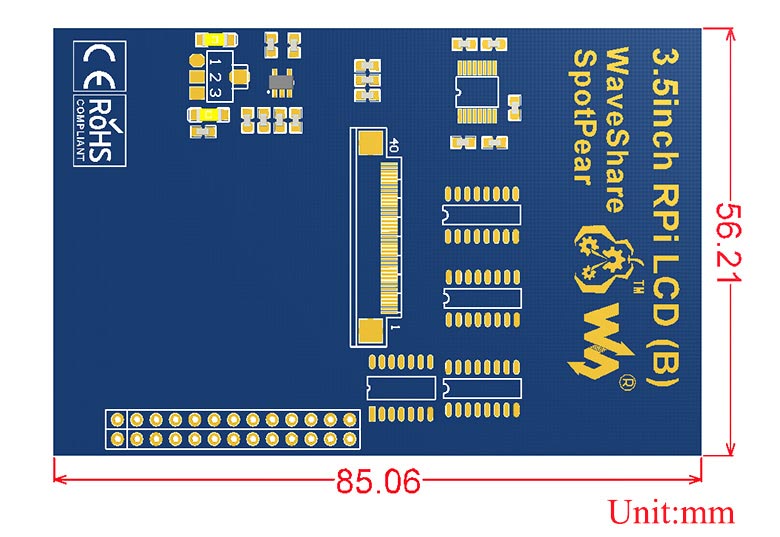

External Dimension





Technical

3.5inch RPi LCD (A) and 3.5inch RPi LCD (B) are hardware compatible with each other (use different drivers), and can be mutually substituted in most cases. (A) is the low cost version while (B) is higher quality IPS version with better display. This is (B) version.

It is strongly recommended that you use a stand-alone 5V/2A power adapter, because the PCs USB port might have not enough power to support the Pi and LCD.

Parameter Type
LCD Type IPS
LCD Interface SPI
Touch Screen Resistive
Touch Screen Controller XPT2046
Colours 65536
Resolution 320x480 pixel
Aspect Ratio 8:5


Waveshare Technical Resources Page
