5 Inch HDMI Touch Screen

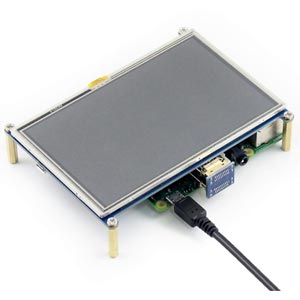

Kanda - Waveshare 5 Inch HDMI Touch Screen LCD, resolution 800 x 480
  • Wave Share 5 Inch Resistive Touch LCD
  • Ideal for Raspberry Pi
  • 800 x 480 resolution
  • HDMI Interface
  • Raspbian/Ubuntu drivers
Shipping to United States
Recorded Airmail: $15.00
Fedex Express: $29.00
Order Code
HDMI-5INCH
Price: $42.99
Discontinued

No Replacement





Product DetailsTop of Page

Waveshare 5 Inch HDMI Touch Screen LCD, resolution 800 x 480

5 inch Resistive Touch Screen LCD, with 800 x 480 resolution, and HDMI interface. Ideal for Raspberry Pi. Waveshare part number(SKU) is 10563.

Features

  • 800�480 high resolution, touch control
  • Compatible and Direct-connect with any revision of Raspberry Pi (except the Pi 1 model B or Pi Zero, which requires an HDMI cable)
  • Drivers provided (works with your own Raspbian/Ubuntu directly)
  • HDMI interface for displaying, no I/Os required (however, the touch panel still needs I/Os)
  • Back light control to lower power consumption
  • High quality immersion gold surface plating

PIN NO. SYMBOL DESCRIPTION
1, 17 3.3V Power positive (3.3V power input)
2, 4 5V Power positive (5V power input)
3, 5, 7, 8, 10, 11, 12, 13, 15, 16, 18, 24 NC NC
6, 9, 14, 20, 25 GND Ground
19 TP_SI SPI data input of Touch Panel
21 TP_SO SPI data output of Touch Panel
22 TP_IRQ Touch Panel interrupt, low level while the Touch Panel detects touching
23 TP_SCK SPI clock of Touch Panel
26 TP_CS Touch Panel chip selection, low active

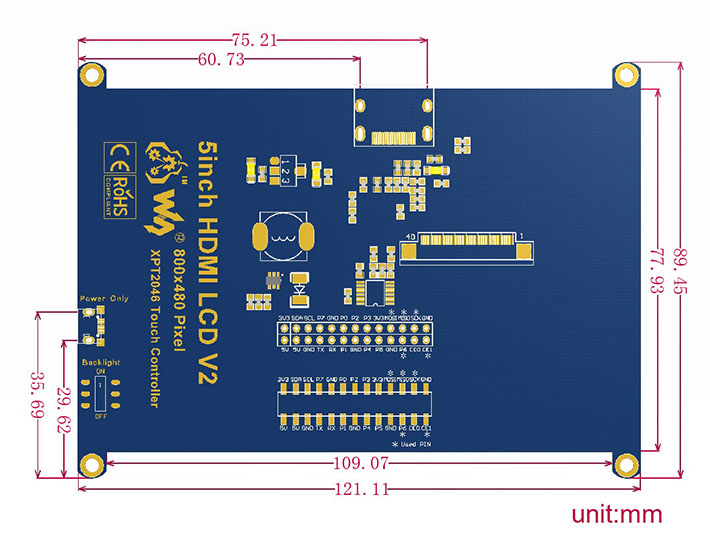

External Dimension



LCD dimensions

Technical

It is strongly recommended that you use a stand-alone 5V/2A power adapter, because the PC's USB port might have not enough power to support both the Raspberry Pi and LCD. In normal operation, the PWR LED will stay on and the ACT LED will keep blinking when the Raspberry Pi starts up successfully.
