AVR Dragon and Boards

AVR Dragon is a combined programmer and In Circuit Emulator (ICE) for AVR microcontroller development. It operates from within AVRStudio development environment, which allows you to debug both C and assembly code, or to program your chosen AVR, from a single software program.

AVR Training Solutions


AVR-DRAGON


avr dragon emulator and programmer

Runs from AVRStudio and includes all cables for ISP, DebugWire and JTAG


AVR Training Kit


avr dragon emulator and programmer with STK200 AVR board

AVR Dragon with STK200 AVR board, plus training, sample code and books


ATmega128 Training Kit


avr dragon emulator and programmer with STK300 AVR board

AVR Dragon with STK300 64-pin AVR board, plus training, sample code and books


The Kanda AVR Dragon is the genuine Atmel tool, not a clone, but we have included all the AVR ISP, DebugWire, power, USB and JTAG cables needed to make it easy to setup and use, unlike the standard version. We have also included adapters to connect JTAG to STK200 and STK500 AVR boards and comprehensive instructions.

  • It runs from AVRStudio 4, AVRStudio 5 and AVRStudio 6
  • Supports ISP, JTAG and DebugWire (for debugging smaller devices)
  • AVRStudio software and WinAVR C Compiler included
  • Power wires, JTAG cable, 10 and 6 Way ISP and DebugWire connections
  • JTAG Adapters
  • Instructions
AVR Dragon Picture

The Dragon is a fully fledged emulator as good as much more expensive ICE units. The only difference is that it is not cased. Atmel sell it with no leads and poor instructions, which makes it hard to connect it to your AVR boards. We have corrected both of these short comings. It can also power your AVR board so you do not need a power supply.

Complete AVR Training Kits

Kanda also supply STK200 Dragon Kit and the STK300 Dragon kit which are ideal for learning how to program the AVR microcontroller. The kits include

  • AVR Dragon emulator for programming and debugging your code
  • STK200 AVR board for 8, 20, 28 or 40 pin AVRs or STK300 64-pin AVR board
  • AVR Studio and WinAVR C compiler to develop your code
  • Book on CD that covers all the basics before moving on to advanced topics
  • Sample code in C and Assembly language
  • Guides covering software and hardware
  • AVR microcontroller datasheets
  • Complete board schematics

Both the STK200 and STK300 kits give you a complete understanding of the AVR microcontroller and how to program it to do want you want. This lets you develop your own circuits without relying on expensive modules like Basic Stamp or Arduino shields.



STK200 and STK300 AVR Boards

AVR development is much easier if you have known hardware and sample code, so our kits include the STK200 board or STK300 board with sockets and peripherals such as LEDs, switches, ADC, EEPROM, LCD and keypad interfaces and serial port. The two boards are

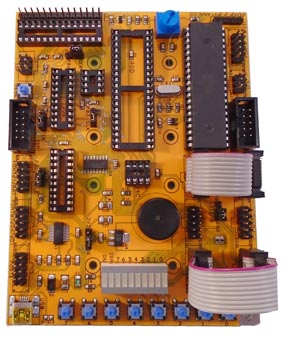

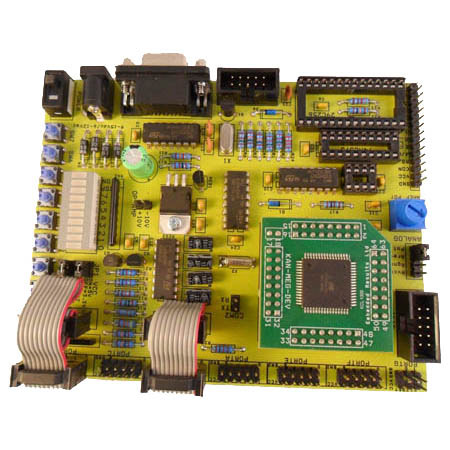

STK200 AVR Board STK300 Board
STK200 AVR Board STK300 AVR Board
Board for 8, 20, 28 and 40-pin AVR microcontrollers Board for 64-pin mounted AVR microcontrollers

Unless you have a specific project in mind that needs lots of pins, the STK200 is the right choice for most people. It has 40-pin ATmega16, with 16 KB of memory, ideal for most simple projects and this can be replaced by other 40-pin AVR microcontrollers, up to 128KB ATmega1284, so you won't run out of memory.

These kits are made in the UK by Kanda but we supply them throughout the world.

AVR Dragon is a genuine Atmel product with improvements by us
