DNP-2486 586 Linux ECC Module Starter Kit

Starter Kit for x86 DNP-2486 Module with Linux and ECC

It has an Amazon S3 cloud storage client preinstalled, and comes with a free 30-day licence for the Amazon Cloud Server. This allows all data storage, processing, messaging and other functions to take place on the Internet. Your chance to try out Embedded Cloud Computing!

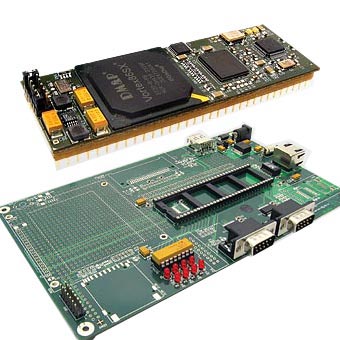

The DIL/NetPC DNP/2486 starter kit is also everything you need to get started with your 32-bit x86 SoC Linux- and Java-based embedded networking or embedded gateway application. The starter kit includes a DNP/2486 module with a pre-installed embedded Linux, the evaluation board DNP/EVA11-SV1, power supply, serial interface (null modem) cable, one CD-ROM with software and documentation and a printed user manual for the first steps with the starter kit.

---

STK29 Software
The starter kit CD-ROM comes with a full GNU cross tool chain for C/C++ software development and an Eclipse-based tool kit for Java development. The binary files of the C/C++ tool chain runs on an x86 Linux-based host (SuSE, Red Hat or other) and builds binary files for 32-bit x86 (IA-32) CPUs with Linux 2.6. The Java tools supports Windows-and Linux-based hosts. For using the DIL/NetPC DNP/2486 starter kit you need a PC-based development system. The minimal configuration for this system is a PC with Windows O/S and the HyperTerminal terminal emulation program. Hyperterminal requires a free COM port (COM1 or COM2) for the serial link between the DIL/NetPC DNP/2486 and the PC. For using the Ethernet link, your PC needs a 10/100 Mbps Ethernet LAN adapter. The PC LAN interface needs support by a Telnet and FTP client.

---

Main Features
There are two versions of Linux available for the DIL/NetPC DNP/2486. 1. The pre-installed MIN-Linux (Minimal Linux), which is using a RAM disk image based on the Debian Etch (4.0). 2. The MAX-Linux (Maximal Linux), which is using the on-board 1 GByte NAND Flash memory for kernel and root filesystem. The MAX-Linux is also Debian-based. This full-featured x86 Linux offers Telnet, SSL/SSH, HTTP, FTP, Java 6 Runtime Environment and many more.

• DIL/NetPC DNP/2486 with Vortex86SX 32-bit x86 SoC @ 300 MHz Clock Speed, 1 Gbytes NAND Flash and 64 Mbytes DDR2 SDRAM
• PC-compatible AMI BIOS and MIN-Linux pre-installed in Flash
• USB stick with ready-to-install MAX-Linux and pre-configured Java runtime (Java 6 J2SE)
• Evaluation Board DNP/EVA11-SV1
• Null Modem Cable
• 110 VAC or 230 VAC to 5 VDC International Power Supply
• CD-ROM with User Manual and Hardware/Programmers Manuals
• Linux Source Codes
• GNU Cross Tool Chain for C/C++ Software Development
• Eclipse-based tools for Java Software Development
• Linux Remote Login with Telnet
• Web Server Setup Sample
• FTP Server Setup Sample
• Many Sourcecode Samples

On request the DIL/NetPC DNP/2486 starter kit supports also ROM-DOS 6.22. This allows DIL/NetPC (A)DNP/1486 users to run DOS-based applications on the DNP/2486. Please contact us for more details.
