RS08 ICD

In-Circuit Debugger for RS08

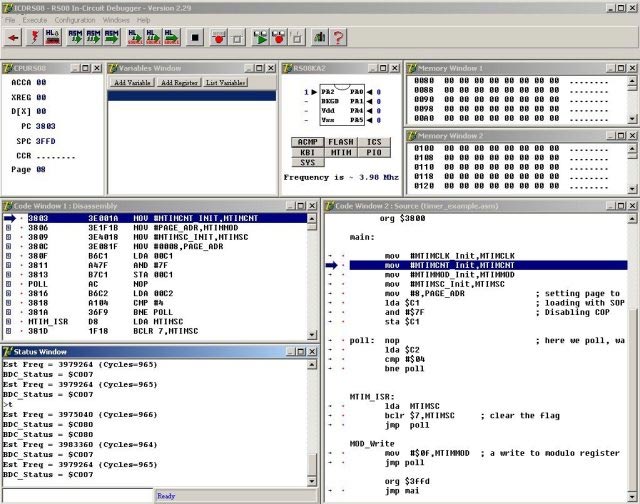

PEmicro's ICDRS08 is a powerful tool for debugging code. It uses the processor's background debug mode Module(BDM), via any of PEmicro's RS08 compatible interfaces (see product add-ons for more information), to give the user access to all on-chip resources.

ICDRS08 is a great tool for creating repeatable testing, calibration, and debugging procedures.

Debugger features

• Full-speed in-circuit emulation
• Breakpoints with counters on the Nth execution
• Variables window showing many data types
• Realtime execution as well as multiple tracing modes
• Startup and Macro files for automating the debug process
• Context-sensitive help for all commands
• Timing measurement and execution count functions
• Support for symbolic register files
• Full assembly souce-level debugging
• C source-level debugging using ELF/DWARF v2.0

This software can be used instead of a full expensive development environment like Keil, IAR or Code Warrior. Activation key will be emailed to you or supplied via your PE Micro account.
