Point of Sale Terminal ServersThis family connects legacy serial credit card payment terminals to 10Base-T Ethernet networks. They include easy to use managenent via Telnet or serial port, SSL security features and support for ADSL, and fast data transfer rates.
Main Features

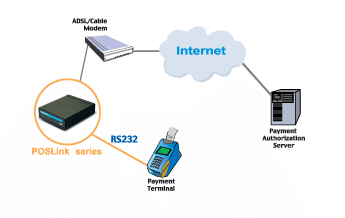

- Connects legacy credit-card payment terminals to 10Base-T Ethernet network
- Transfer transaction data via TCP/IP
- SSL for transaction data encryption
- PPPoE protocol for DSL connection to broadband network
- Reliable TCP/IP protocol stack
- Serial data transfer rate up to 19200bps
- Serial communication with the payment terminal with RJ11 connector
- Configuration via telnet or serial port
| POSLINK100 | POSLINK400 | |
|---|---|---|
| POS Terminal Interface | Serial 1-Port | Serial 4-Port |
| RJ11 serial port | ||
| Serial speeds: 1200bps to 19200bps | ||
| Signals: Rx, Tx, RTS, CTS, DTR, DSR, GND | ||
| Flow Control: Hardware RTS/CTS | ||
| Network Interface | 10Base-T Ethernet with RJ45 Ethernet connector | |
| Supports static and dynamic IP address | ||
| Security | User ID & Password | |
| Data Encryption: SSL | ||
| Management | Management Tools: Serial console port | |
| Firmware: Stored in Flash memory and downloadable via serial console or Telnet | ||
