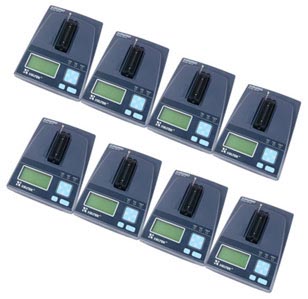

Xeltek SuperPro 501S N4 Cluster Gang Programmer
 |
Order Code SP501S-4N |
| Price: £2,547.20 | |
| Short Lead Time | |
Xeltek SuperPro 501S N4 Cluster Gang Programmer
The SuperPro 501S N4 Cluster is composed of x4 units of our newest and fastest SuperPro 501S programmer complete with 4 512KB CF cards for standalone operation. As a SuperPro 501S N*Cluster owner, users get two programmers packaged into one! SuperPro 501S N*Cluster owners, have the benefit of using it as:
Xeltek SP501S-4N Details
Xeltek SP501S-4N Contents
Specifications
Quick Links
Xeltek Device search
Full Device Support List in new window.
SP50S-4N Programmer Software
Different Xeltek Gang Programmer Solutions
The SuperPro 501S N4 Cluster is composed of x4 units of our newest and fastest SuperPro 501S programmer complete with 4 512KB CF cards for standalone operation. As a SuperPro 501S N*Cluster owner, users get two programmers packaged into one! SuperPro 501S N*Cluster owners, have the benefit of using it as:
- A universal programmer for engineering application.
- Secondly, as a manufacturing programmer for volume production.
Xeltek SP501S-4N Details
- Programs devices with Vcc as low as 1.2V.
- Ultra fast programming speed: Programs and verifies 64 Mb NOR FLASH memory in 11.3 seconds and 43.4 sec for 64 Mb Eeprom (QB25F640S33B60).
- Built with 48 universal pin-drivers for support of today’s most complex devices. Universal and device independent socket adapters are available for various packages.
- The programmer operates in either PC hosted mode or stand-alone mode.
- Under PC hosted mode, a PC controls the programmer via a high-speed USB2.0 connection to program a chip.
- Under stand-alone mode, the user controls the programmer via 20-characters, 4-line LCD display with 6-KEY keypad. A CF (compact flash) card stores the project files. In stand-alone mode, the user can operate multiple units to construct a concurrent multiprogramming system.
- ISP/ICP programming capability through optional ISP/ICP adapter.
- Only IC manufacturer approved programming algorithms provide high reliability. Vcc verification at (+5%~-5%) and (10%~-10%) enhances programming reliability.
- Provides over-current and over-voltage protection for safety of the chip and programmer hardware.
- Compatible with Windows Vista x32 and Windows XP x32
- Includes the following advanced and powerful software functions:
- Chip operation starts immediately upon proper chip insertion in Production Mode.
- The Project function simplifies processes such as device selection, file loading, device configuration setting, program option, and batch file setting into one step.
- Password protection provides security for project files and production volume control.
- The Batch command combines device operations like program, verify, security into a single command at any sequence.
- Serial number generators are available as standard or customer-specific functions.
- A Log file provides quality tracking.
Xeltek SP501S-4N Contents
- Four SuperPro 501S Programmers with DIP48 Adapters
- Four 512 MB Compact Flash Cards
- AC adapter
- Software CD
- USB2.0 Cable
- User's Manual
Specifications
- Devices Supported: EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA Configuration PROM, FLASH memory (NOR & NAND), BPROM, NVRAM, SPLD, CPLD, EPLD, Firmware HUB, Microcontroller, MCU, Standard Logic
- Package: DIP, SDIP, PLCC, JLCC, SOIC, QFP, TQFP, PQFP, VQFP, TSOP, SOP, TSOPII, PSOP, TSSOP, SON, EBGA, FBGA, VFBGA, uBGA, CSP, SCSP,…
- PC interface: USB2.0 (High speed)
- Stand-alone memory: Compact FLASH Card
- Power supply: AC Adapter: Input AC 90V- 250V; Output: 12V/2A
- Main unit: Dimensions 178(L) * 130(W) * 40(h) mm;
- Package: Dimensions 320(L) * 300(W) * 85(H) mm; Weight 18 Lbs (8.2 Kg )
