Selected Product: Programmers/Burners/Universal Programmers/SP5000
Xeltek SuperPro 144-pin Universal Programmer Order Code: SP5000 Price: $1,995.00

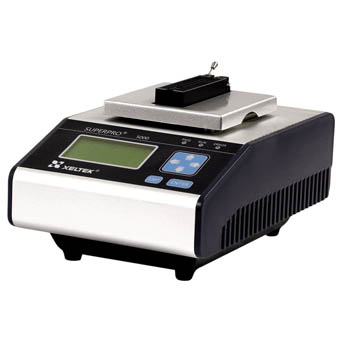

Xeltek SuperPro 144-pin Universal Programmer
USB Interfaced Ultra-Fast 144pin, PC Driven or Stand-Alone Universal Programmer, with 144 Built-in Universal pin drivers.
Features
Hardware & Electrical Specifications
Contents
datasheet
This opens in a new window.
USB Interfaced Ultra-Fast 144pin, PC Driven or Stand-Alone Universal Programmer, with 144 Built-in Universal pin drivers.
Features
- Device support to reach 40,000+ by end of 2008.
- Programs devices with Vcc as low as 1.2V.
- Ultra fast programming speed: Programs and verifies 64 Mb NOR FLASH memory in 11.3 seconds and 1 GB NAND in 108 seconds.
- Built with 144 universal pin-drivers for support of today’s most complex devices.
- Universal and device independent socket adapters are available for various packages up to 144 pins.
- The programmer operates in either PC hosted mode or stand-alone
mode.
- Under PC hosted mode, a PC controls the programmer via a high-speed USB2.0 connection to program a chip.
- Under stand-alone mode, the user controls the programmer via 20-characters, 4-line LCD display with 6-KEY keypad.
- A CF (compact flash) card stores the project files.
- In stand-alone mode, the user can operate multiple units to construct a concurrent multiprogramming system.
- ISP/ICP programming capability through optional ISP/ICP adapter.
- Only IC manufacturer approved programming algorithms provide high reliability.
- Vcc verification at (+5%~-5%) and (10%~-10%) enhances programming reliability.
- Over-current and over-voltage protection for safety of the chip and programmer hardware.
- Compatible with Windows Vista and Windows XP x32/x64
- Includes the following advanced and powerful software functions:
- Chip operation starts immediately upon proper chip insertion in Production Mode.
- Project function simplifies processes such as device selection, file loading, device configuration setting, program option, and batch file setting into one step.
- Password protection provides security for project files and production volume control.
- Batch command combines device operations like program, verify, security into a single command at any sequence.
- Serial number generators are available as standard or customer-specific functions.
- Log file provides production quality tracking.
- CE and ROHS Compliant
Hardware & Electrical Specifications
- Devices Supported: EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA Configuration PROM, FLASH memory (NOR & NAND), BPROM, NVRAM, SPLD, CPLD, EPLD, Firmware HUB, Microcontroller, MCU, Standard Logic
Full Device Support List
- Package: DIP, SDIP, PLCC, JLCC, SOIC, QFP, TQFP, PQFP, VQFP, TSOP, SOP, TSOPII, PSOP, TSSOP, SON, EBGA, FBGA, VFBGA, uBGA, CSP, SCSP
- PC interface: USB2.0 (High speed)
- Stand-alone memory: Compact FLASH Card
- Power supply: AC Adapter: Input AC 100V- 240V; Output: 12V/1.5A
- Main unit: Dimensions 148(L) * 216(W) * 94(h) mm; Weight 1.6 Kg
- Package: Dimensions 301(L) * 252(W) * 145(H) mm; Weight 2.8Kg
Contents
- SuperPro 5000 Programmer with a DIP48 Adapter
- AC adapter
- Software CD
- USB2.0 Cable
- User Manual
- Registration Card
datasheet
This opens in a new window.
