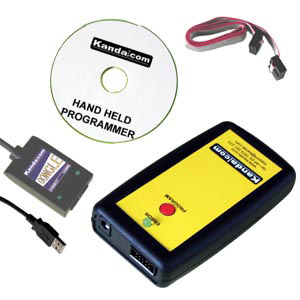

USB Serial EEPROM Handheld Programmer Starter Kit
 |
Order Code HH0110EE |
| Price: £108.16 | |
| In Stock | |
USB Starter Kit for Hand Held Serial EEPROM Programmer
A very simple to use Hand Held Programmer for Serial EEPROM devices that is loaded from the PC using the USB PC interface and wizard software included in this Starter Kit. Once the serial EEPROM programmer is loaded with device information and data, then you just plug it into your target circuit and press the red button. So you only need one starter kit for lots of programmers.
The PC interface is USB port.
Starter Kit Features
- Supports Win 2000, XP, Vista and 7 - 32 and 64-bit
- Connects to USB port
- Simple wizard software for device selection, data file loading, lockbits, operating voltage and other information
- Simple to connect programmer for loading information
Starter Kit Contents
- Serial EEPROM Handheld Programmer
- PC adapter (USB port dongle)
- 10-way programmer lead
- PC adapter cable
- Software CD
- Supplied in video case
Serial EEPROM Programmer Features
- Compact, portable and easy to use
- One button operation
- Supplied with 9V PP3 battery
- Power supply connector (2.1mm, centre positive)
- Programmer can power target up to 150mA or draw power from target
- Supports low voltage and 5V devices
- Loaded from PC using simple Wizard Software and PC adapter supplied with starter kit - supports Windows 2000, XP, Vista and 7 - 32 and 64-bit
- Erase, program verify and lockbits supported
- Includes Microcontroller reset line to isolate MCUs in circuit
- Non-volatile memory keeps data even with flat battery
Serial EEPROM Support
All 24C I2C and 25C SPI family EEPROMs are supported. The serial EEPROM handheld Programmer has these device support features:
Physical
- Dimensions: 106 x 58 x 25mm, 4.5 x 2.5 x 1 inches
- Includes 9V PP3 battery
- Power supply requirements: 9V regulated, 2.1mm barrel connector, centre positive - see below for suitable power supply.
