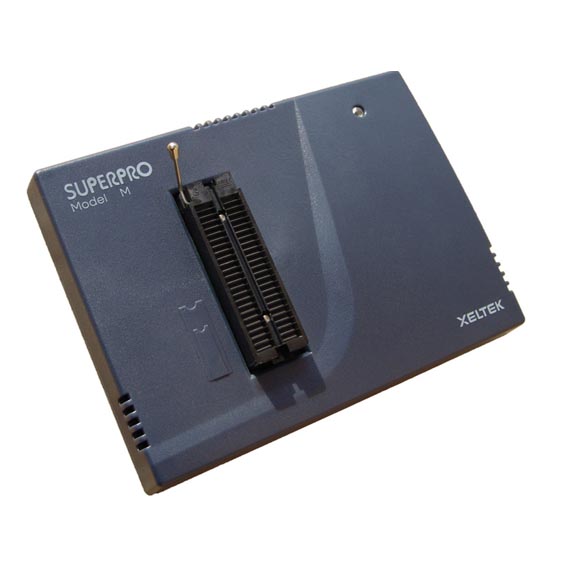

Xeltek SuperPro M USB 2.0 Universal Programmer

Xeltek SuperPro M USB 2.0 Universal Programmer

SuperPro-M Main Features

• Fastest Lowest-cost Programmer: With ARM7 MCU it gives ultra-fast programming experience.
• Programs devices with Vcc as low as 1.2V
• Built-in 48 universal pin drivers
• CE and ROHS Compliant

SuperPro-M Specification

• Supports 20,099 IC devices from 158 manufacturers.
• Programs devices with Vcc as low as 1.2V.
• Ultra fast programming.
• Built with 48 universal pin-drivers for support of today�s most complex devices. Universal and device independent socket adapters are available for various packages.
• The programmer operates in PC hosted mode. Under PC hosted mode, a PC controls the programmer via a high-speed USB2.0 connection to program a chip.
• ISP/ICP programming capability through optional ISP/ICP adapter.
• Only IC manufacturer approved programming algorithms provide high reliability.
• Vcc verification at (+5%~-5%) and (10%~-10%) enhances programming reliability.
• Provides over-current and over-voltage protection for safety of the chip and programmer hardware.
• Compatible with Windows 7 & Vista & XP 32/64 bit
• Includes the following advanced and powerful software functions:
  • Chip operation starts immediately upon proper chip insertion in Production Mode.
  • The Project function simplifies processes such as device selection, file loading, device configuration setting, program option, and batch file setting into one step.
  • Password protection provides security for project files and production volume control.
  • The Batch command combines device operations like program, verify, security into a single command at any sequence.
  • Serial number generators are available as standard or customer-specific functions.
  • A Log file provides quality tracking.

Contents

• SuperPro-M 48-pin universal programmer
• Power adapter
• Software CD
