Universal Gang ISP Programmer
 |
Order Code SP-ISP02 |
| Price: $1,995.00 | |
| Short Lead Time | |

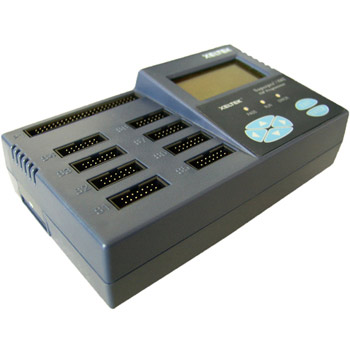

Universal Gang ISP Programmer
The best universal ISP gang programmer on the market. Allows programming of up to 8 devices at once using ISP. It can be used from a PC or ATE system or in standalone mode for maximum flexibility, and supports most ISP algorithms including PIC and AVR microcontrollers, plus ISP programming of devices with I2C, SPI, UART, BDM, MON, MW, JTAG, CAN, ICC, RS232 and any other serial ports.
Each ISP port can be set to different devices and files, or all can be set to program same device
Gang ISP features
- Support 58 IC manufacturer, 1571 pcs devices.
- High speed thanks to the flexible hardware engine. Programming speed adjustable for complicated application environments brought by user target board, length of ISP cable etc.
- Stand-alone and PC-Hosted (USB2.0 High Speed) dual mode;
- Supports ISP programming of devices with I2C, SPI, UART, BDM, MON, MW, JTAG, CAN, ICC, RS232 and any other serial port.
- Supports parallel ICs, e.g. Norflash
- ATE interface
- Over-current and ESD protection to protect your equipment;
- DLL and API for easy integration into your system.
- 8 interfaces can be set independently or together
Hardware Specification for Universal ISP
- ISP cable integrates I2C, SPI, UART, BDM, MON, MW, JTAG, CAN, ICC, RS232 interfaces
- VDD (0-5.5V /0.5A) and Vpp (0-15V / 0.2A) lines provided to power the target board and the target devices.
- Cable driver circuit supports target devices of voltage level 1.5-5V and is ESD protected.
- USB 2.0 (high speed) interface for PC hosted mode and management of project files on SD card.
- A 20 Characters x 4 lines LCD and a 6-key keypad are built with it for stand-alone operation. In stand-alone mode project files are stored on the SD card (up to 16GB). The number of the project files is limited only by the capacity of the SD card.
- ATE interface is built for easy external hardware control. 6 lines SEL0-SEL5 are for project selection (maximum 64 files); 2 command lines START and STOP; 3 STATUS lines PASS, FAIL and BUSY. All signals are optical-isolated.
- A universal AC adaptor of DC12V/2A is included for power supply.
- LAN port.
Software Specifications
- Supports almost all devices with ISP interface.
- Supports Jam and Staple files from ACTEL and ALTERA; Direct C files from ACTEL.
- Programming speed selectable (High, Normal and Low) for complicated applications such as different cable lengths, different target load characters.
- Dynamic buffer function. Application examples include device S/N, MAC address, frequency or transducer calibration etc.
- File format on SD: FAT16, FAT32.
- Functions for IP protection: Project security, SD security, batch control, administration management etc.
- API and DLL provided for easy integration into customers’ system like ICT and ATE.
- Software provides the features for multiple units to work concurrently controlled by USB HUB.
Univerasal Gang ISP Contents
- SuperPro IS02 Programmer with an ISP cable
- AC adapter
- Software CD
- USB Cable
- SD card for stand-alone operation
- Parallel Cable
Device Support List
Supports devices from Altmel (including AVR), Catalyst, Microchip (including PIC), Philips, NEC and more.
Full Device Support List
Please contact us if your device isn't supported and we will try and add it.
