Wellon Universal Programmer PLCC44 Socket Adapter

Kanda - Wellon Universal Programmer PLCC44  Socket Adapter for 48-pin programmers

Wellon PLCC44 Socket Adapter
For 44-pin devices in PLCC packages, and for programmers with 48-pin ZIF socket.



Shipping to United States
Recorded Airmail: $15.00
Fedex Express: $29.00
Order Code
WL-PL44-U1
Price: $49.00
In Stock



Related Products








Product DetailsTop of Page

Wellon PLCC44 Socket Adapter


For 44-pin devices in PLCC packages, with 1.27mm pitch and 11 x 11mm package eg PIC16F87x
This socket has all 44 PLCC pins wired to 44-pin DIP, so can be used in all programmers with 48-pin ZIF socket.

For 44-pin to 40-pin DIP, see WL-PL44-P4

Please see Full device support lists for the socket required for your device and programmer
Links from Wellon Overview for device support lists.
Package Description

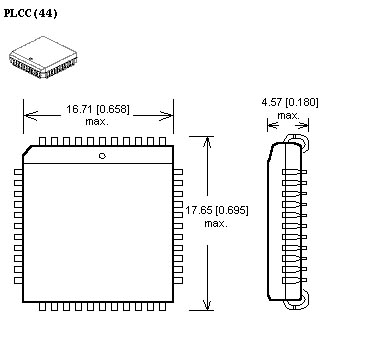

PLCC 44 adapter package diagram
Pin Wiring

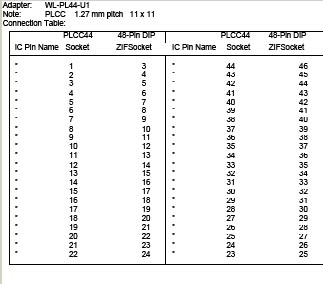

PLCC44 adapter pin layout

 Top of Page




Ordering Information

Ordering Information Order Code: WL-PL44-U1 Price: $49.00
Shipping to United States: Recorded airmail - $15.00 Fedex Express - $29.00
