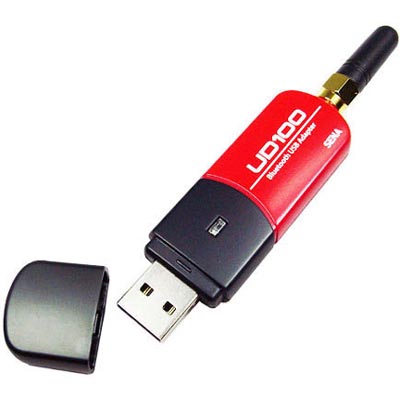

300m Bluetooth USB Adapter, Toshiba software
USB Bluetooth Adapter or USB Bluetooth dongle with 300 metre range - up to 400m with optional dipole antenna. Supports most Bluetooth profiles - mobile phones, headsets, neworks, Internet, serial ports, mice, keyboards etc. using a Toshiba Bluetooth driver.
Main Features
- Bluetooth 2.0+EDR Class 1
- Working distance 300m, up to 1000m using optional antenna
- USB 2.0 interface
- Bluetooth driver CD (Toshiba driver)
- Please see related products for Blue Soleil Software version
- Long range USB Bluetooth adapter
For most applications, driver version does not matter. Often Windows has alternative drivers already installed.
Specification
|
Parani-UD100 |
Standards |
- Bluetooth 2.0+EDR Class 1
- USB 2.0
|
Max Transfer Rate |
3 Mbps (EDR) |
Frequency Range |
2.402 ~ 2.480GHz |
Transmit Output Power |
+19dBm (+6dBm EDR) E.I.R.P |
Receive Sensitivity |
- Basic 1Mbps: -88 dBm
- EDR 2Mbps: -87dBm
- EDR 3Mbps: -82dBm
|
Antenna Connector |
RP-SMA |
Antenna Gain |
- Default Stub Antenna: 1 dBi
- Optional Dipole Antennas: 3 dBi & 5 dBi
- Optional Patch Antenna: 9 dBi
|
Working Distance (In Open Field) |
- Stub antenna: Stub antenna: 300 m
- Dipole (3 dBi): Dipole (3 dBi) : 400 m
- Dipole (5 dBi): Dipole (5 dBi): 600 m
- Patch antenna: Patch antenna: 1 km
* working distance can vary depending on install environment |
Bluetooth stack software |
Toshiba |
Bluetooth Profiles |
DUN, FAX, LAP, SPP, HID, HCRP, FTP, OPP, A2DP, AVRCP, GAVDP, HSP, HFP,PAN, BIP See Notes below |
Computer OS Support |
- Windows 2000/XP/Vista (32/64bit)
- Linux (3rd party driver required)
- MAC OS X (MAC OS X driver required)
|
Size |
72(L) x 22(W) x 10(H) mm |
Operating Temperature |
-20 ~ +70℃ |
Storage Temperature |
-40 ~ +85℃ |
Humidity |
90% Non-condensing |
Regulatory Approvals |
FCC, CE, TELEC, KCC, Bluetooth SIG |
Warranty |
1 year Limited Warranty |
Contents
- Parani-UD100 Bluetooth USB adapter
- Stub antenna
- Quick Start Guide
- CD-ROM including Toshiba Bluetooth driver, User Guide and Data sheet
- Please see related products for Blue Soleil Software version
Bluetooth Profiles
Bluetooth specification uses Profiles to allow different types of device to talk to each other, even if they are from different manufacturers. A lot of Bluetooth devices only use a limited set of profiles for the task they need to do, but this device supports most of the possible profiles so can communicate with nearly all Bluetooth devices.
- DUN, Dial-up Networking Profile, connecting to Internet and other dial-up services
- FAX, Fax Profile, PC fax software connection
-
- LAP, Lan Access Profile, for adhoc Bluetooth networks and connection to WAN, LAN and Internet
- SPP, Serial Port Profile, for UART type connections
- HID, Human Interface Device Profile, for mice, keyboards, joysticks etc
- HCRP, Hard Copy Cable Replacement Profiles, alternative to printer cable but drivers still needed
- FTP, File Transfer Protocol, for file and folder transfer
- OPP, Object Push Profile, for sender to initiate Object transfer - pictures, data tables
- A2DP, Advanced Audio Distribution, high quality audio streaming, especially stereo
- AVRCP, Audio/Video Remote Control Profile, standard interface for TVs etc, plus playback control
- GAVDP, Generic Audio/Video Distribution Profile, For A2DP and VDP
- HSP, Headset Profile, for mobile phone and other headsets
- HFP, Hands Free Profile, for mobile phone hands-free kits
- PAN, Personal Area Network, update to LAP profile
- BIP, Basic Image Profile, for sending images
Bluetooth USB Adapters
Bluetooth USB adapters, also called Bluetooth USB dongles, come in different types from short range devices that are OK for headsets and nearby printers to very long range units that have a range of over 1Km, such as
SD100U. The UD100 USB Bluetooth adapter fits in the middle. Because it has an external stub antenna and powerful wireless circuit, it can easily achieve a 300 m (330 yard) range. This can be extended by changing to a DIPL antenna.
