Selected Product: PC Interfaces/Zigbee Wireless Networks/ZU10-01

Worldwide shipping, easy payment and high quality products. You can rely on Kanda

ProBee USB to Zigbee wireless adapter

	Order Code ZU10-01
	Price: $59.00
	In Stock

	Add to Cart

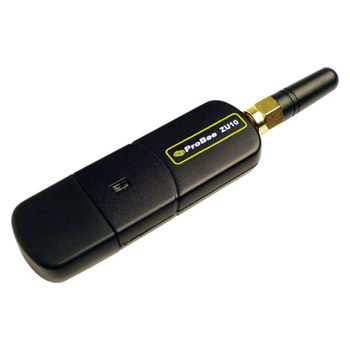

ProBee USB to Zigbee Adapter
The ProBee-ZU10 is an ZigBee USB adapter with integrated ZigBee core and radio/antenna circuits together with high level software library. The ZU10 USB Adapter is designed to meet specific requirements of low cost and low power wireless applications such as home automation or smart energy by adopting the ZigBee technology fully certified under the latest ZigBee Pro standard for the maximum compatibility. The ZU10 provides high performance and robust data transfer capability for wide range of applications.

Main Features

Fully supports Zigbee®/Zigbee Pro 2007 wireless connectivity
Integrated 2.4GHz, IEEE 802.15.4-compliant coprocessor
Various antenna options according to users' requirement, up to 1.6km with optional 5 dBi dipole antenna
USB 2.0 interface
Supports various self management features wirelessly such as firmware upgrade and system configuration by using modem AT command set
Easy to use Windows configuration tool available

ProBee USB Adapter Specification

	ProBee-ZU10
RF Characteristics	Frequency Band: 2.4 GHz Interface Immunity: DSSS Transmit Power: +20dBm E.I.R.P (max.) Receiver Sensitivity: -102dBm @1% BER RF Data Rate: 250 kbps Working Distance: Up to 1.6km using 5 dBi dipole antenna Various Antenna Options from standard 1 dBi antenna to 3/5 dBi dipole antenna Channels: 14 Channel Spacing: 5 MHz
ZigBee Network	Network topology: Mesh Stack profile: ZigBee / ZigBee Pro 2007 Network addressing: Channel, PAN ID, EPID
ZigBee Data Transmission	Unicasting Multicasting Broadcasting Many-to-One Communication Enhanced Reliability based on data retransmission
ZigBee Security	Network Layer security with one Trust Center for efficient operation 128 bit AES encryption algorithms Strong, NIST-approved security
Device Management and Configuration	Configuration Method: AT Commands, ProBee Manager Remote Configuration Remote Firmware Upgrade using both Cloning and Pass-thru methods Supports rich neighborhood device scanning and monitoring using AT commands
Antenna	Default Stub Antenna: 1 dBi Optional Dipole Antenna: 3/5 dBi RP-SMA connector
Interface	USB 'A' type Connector USB 2.0 Full Speed compatible
Computer OS Support	Windows XP/Vista/7 (32/64bit) Linux (3rd party driver required) MAC OS X (MAC OS X driver required)
Environmental	Operating Temperature: -20˚C to 70˚C Storage Temperature: -40˚C to 85˚C Humidity: 90% Non-condensing
Physical Properties	Dimension (L x W x H) - 70.9 x 22 x 10(mm) / 2.8 x 0.9 x 0.4(in) Weight - 10 g / 0.36 oz
Certification	FCC, CE, TELEC, KCC
Certification ID Number	ZIG10006PRV38490-24 * * ZS10 and ZU10 based on ZE10
Warranty	3-year limited warranty

About ZigBee wireless networks

Documentation

datasheet
