USB STK300 AVR Starter Kit

Kanda - USB STK300 AVR Microcontroller Starter Kit with AVRISP
  • Complete AVR Training Kit
  • Includes guides, schematics and books on CD
  • STK300 AVR board with mounted 64-pin ATmega128
  • USB AVRISP programmer
  • AVRStudio development environment and WinAVR C compiler
Shipping to United States
Recorded Airmail: $15.00
Fedex Express: $29.00
Order Code
STK300
Price: $95.00
In Stock



Related Products








Product DetailsTop of Page

The best ATMega128 Starter Kit ...


The STK300 AVR board designed by Kanda for Atmel has always been extremely popular and now Kanda have updated and improved this ATMega128 AVR starter kit with a USB programmer. This kit contains all you need to develop designs with 64-pin AVR microcontrollers, including training material.
A version with Emulator included is here,
STK300 with AVR Dragon

Overview of different AVR starter kits and AVR boards STK300 AVR Board with AVR ISP AVR Programmer and ATmega128

STK300 AVR Starter Kit

  • AVR board with mounted ATmega128
  • AVRISP USB AVR Programmer
  • AVR ISP runs from AVRStudio 4 and 5, or from separate software
  • Embedded C book on CD
  • Get Going with...AVR book on CD
  • WinAVR C Compiler
  • WINAVR C examples - UART, Keypad, LCD, switches and LEDs
  • Atmel AVRStudio4 IDE, Assembler and Simulator
  • AVR Datasheets, documentation, schematics and sample files
Mounted ATmega64 and ATmega2561 devices will fit in this AVR board - see
KANMEGDEV2561
KANMEGDEV64
Please contact sales or use Quote button below if you require a mounted ATmega64, ATmega1281V or ATmega2561 instead of the ATmega128L fitted as standard.

AVR Device Support


  • ATmega64, ATmega2561, ATmega1281 and ATmega128 have board support
  • Equivalent low voltage (L) Parts are supported
  • Devices Supported by ISP :-
  • ATtiny13, ATtiny25, ATtiny26, ATtiny2313, ATtiny45, ATtiny261, ATtiny461, ATtiny84*, ATtiny85, ATtiny861
  • ATtiny24, ATtiny44, ATtiny84 - ISP only
  • ATmega48, ATmega8, ATmega88, ATmega16, ATmega161, ATmega162, ATmega163, ATmega164P, ATmega165, ATmega168, ATmega169, ATmega32, ATmega325, ATmega324P, ATmega329, ATmega644, ATmega644P, ATmega645, ATmega649, ATmega8515, ATmega8535
  • ATmega64, ATmega128, ATmega1280, ATmega1281, ATmega169, ATmega2561, ATmega2560, ATmega3250, ATmega3290, ATmega640, ATmega6450, ATmega6490
  • AT90CAN32, AT90CAN64, AT90CAN128, AT90PWM2/3, AT90PWM316
  • See STK200 in Related Products that has socket support for smaller (40-pin or less) devices.

Operating Systems


  • Win 2000/XP/VISTA/7/8 (32 and 64-bit)

STK300 AVR Board Details

  • ATmega128L-8AI microcontroller mounted on daughter board to avoid you having surface mount problems. The ATmega128L operates from 2.7-5.5V and will generally run faster than 8 MHz at higher voltages. If you require a mounted ATmega128-16AI, ATmega1281 or ATmega2561 microcontroller instead please request a quotation as there may be a small surcharge.
  • Easy access to all AVR ports on the board
  • Peripheral support including ADC and Two RS232 ports
  • LCD interface.
  • 3.3V/5V operation
  • +10 and -10V supplies available to connect OP-Amp
  • Brownout circuitry
  • Real Time Clock support
  • External Flash RAM support
  • Switches and bar LED, with jumper leads to move port
  • 24C EEPROM socket
  • ISP and JTAG Interfaces
  • Mounted ATMega128L device
STK300 AVR Board and AVRISP with AVRStudio support


STK300 Kit Contents


  • STK300 AVR board
  • AVRISP -U USB port AVR programmer. Easy to use, full Fuse, Lockbit and Bootblock support. Can run from AVRStudio or on its own
  • AVRStudio Development environment from Atmel. Includes projects, editor, assembler and simulator. This is Atmel software
  • WINAVR AVR C Compiler built-in to AVRStudio
  • WINAVR C examples - UART, Keypad, LCD, switches and LEDs
  • Manual, schematics, AVR Datasheets, sample files, circuit examples
  • Embedded C book on CD

STK300 Accessories


7 segment display

7-Segment Display Module
STK200 RAM chip set

RAM Chip Set
LCD module

16x2 LCD Module
LCD module

4 x 3 Keypad

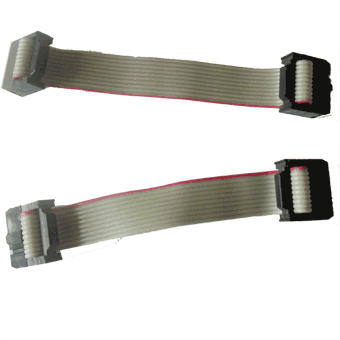

10-way jumper leads

2 x Jumper Leads
9V universal wall transformer

9V Universal PSU
Mounted ATmega128 microcontroller

Mounted ATmega128 Microcontroller
24C Serial EEPROM

24C Serial EEPROM




Documentation




These open in a new window.


 Top of Page




Ordering Information

Ordering Information Order Code: STK300 Price: $95.00
Shipping to United States: Recorded airmail - $15.00 Fedex Express - $29.00
