Handheld PIC Programmer LPT Starter Kit

Kanda - New Handheld PIC  Programmer Parallel Port Starter Kit

LPT Starter kit for Handheld PIC Programmer
Parallel Port version has been replaced by USB version. Existing parallel port programmers can easily be converted to USB...



Shipping to United States
Recorded Airmail: $15.00
Fedex Express: $29.00
Order Code
PIC-HH0110P
Price: $119.00
Discontinued



Related Products








Product DetailsTop of Page

LPT Starter kit for Handheld PIC Programmer


Parallel Port version has been replaced by USB version. Existing parallel port programmers can easily be converted to USB so can continue to be used with USB PC dongle.

USB dongle is available separately, see related products above.


Handheld PIC Programmer with Parallel Port PC interface and software. Load the programmer from a PC using the LPT Port PC interface and the simple Wizard Software and then you do not need PC again. The Hand Held PIC Programmer is completely portable and you just plug it into your PIC target boards and program/verify Code and/or Data with a single button press. Supports PIC16F and PIC18F microcontrollers, and powers target circuit. Has 256KB memory.
Now supports PIC18FxxJxx devices
The PC interface is Parallel port.
Software Features
  • supports Windows 2000/XP/VISTA
  • Simple software
  • Loads Flash, EEPROM, Configuration words and User ID from HEX file
  • Select Low or High Voltage programming
  • Select for Device ID match, configuration word verify, EEPROM Data save and other features
  • Click finish to load your PIC programmer

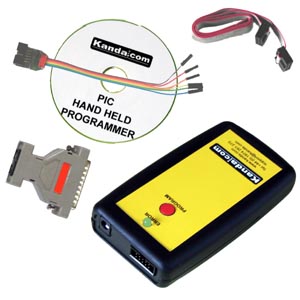

Starter Kit contents


  • Hand Held PIC Programmer
  • PC Interface (Parallel) for loading code and settings
  • Ribbon cables with 10-way connector
  • 6-way Flying lead adapter
  • Software CD

Handheld PIC Programmer Features


  • PIC Handheld Programmer uses 9V PP3 battery or power supply
  • Single button operation
  • Load it once, program targets for ever
  • Reload new programs as often as you need
  • Holds program code indefinitely
  • Low or High Voltage programming
  • 10-way DIL and 6 x 1-way flying lead connectors included
  • Program/Verify Flash or EEPROM or both
  • Program and verify Configuration Bytes and User ID
  • Existing EEPROM Data can be preserved
  • Powers target device (up to 150mA) at 5V regardless of target voltage (so that Bulk Erase command always works)
  • Dimensions: Metric- 106mm x 58mm x 25mm
  • Dimensions: Imperial - 4.5 x 2.5 x 1 inches
  • 256KB memory

PIC Microcontroller Support


All released PIC18F microcontrollers including PIC18FxJx. Free updates available for new device support.

PIC16F Microcontrollers
  • PIC16F627
  • PIC16F628
  • PIC16F627A, PIC16F628A, PIC16F648A (HVP mode programming only if Reset pin is not reprogrammed as I/O)
  • PIC16F631, PIC16F636, PIC16F639
  • PIC16F677
  • PIC16F68x, PIC16F690
  • PIC16F7x
  • PIC16F7x7
  • PIC16F785
  • PIC16F818
  • PIC16F819
  • PIC16F8x
  • PIC16F8xA
  • PIC16F87x
  • PIC16F873A
  • PIC16F874A
  • PIC16F876A
  • PIC16F877A
  • PIC16F88x
  • PIC16F91x
Note: Not all devices have LVP mode

Not supported
  • PIC16F630
  • PIC16F676
  • PIC16F716 - will be supported
  • PIC16F5x - will be supported
  • PIC16F505

Extra LPT Port Hand Held PIC Programmers You only need one starter kit for as many Handheld PIC programmers as you require

If you do not want to use the internal 9V PP3 battery, the power supply required is 9V with a 2.5mm Barrel connector. These are available on the shop.
9V International Power supply for use with this PIC handheld programmer.

For an overview of our PIC Programmer range, please see PIC Programmer Overview in new window
