New Handheld PIC Programmer USB Starter Kit

USB Starter kit for New Handheld PIC Programmer

Handheld PIC Programmer with USB PC interface and software. Load the Handheld PIC Programmer from a PC using the USB PC interface and the simple Wizard Software and then you do not need PC again. The Hand Held PIC Programmer is completely portable and you just plug it into your PIC target boards and program/verify Code and/or Data with a single button press. Supports PIC16F and PIC18F microcontrollers, and powers target circuit at 3.3V or 5V. Has 256KB memory.
Now supports PIC18FxxJxx, PIC18FxxKxxx, PIC16F182x and PIC16F193x PIC microcontroller families.
The PC interface is USB port.

Software Features

• Supports Windows 2000/XP/VISTA/Windows7 - 32 and 64-bit versions
• Simple software
• Loads Flash, EEPROM, Configuration words and User ID from HEX file
• Select Low or High Voltage programming
• Select for Device ID match, configuration word verify, EEPROM Data save and other features
• Limit number of programs allowed, if required.
• click finish to load your PIC programmer

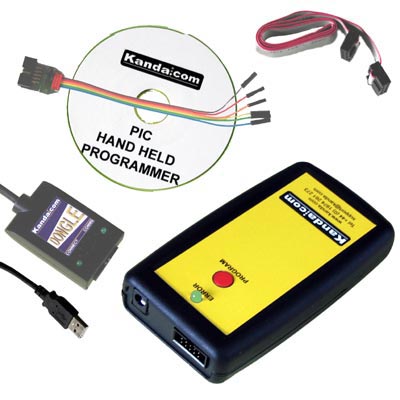

Starter Kit contents

• Hand Held PIC Programmer
• PC Interface (USB) for loading code and settings
• Ribbon cables with 10-way connector
• 6-way Flying lead adapter
• Software CD
• Supplied in case

New Handheld PIC Programmer Features

• Hand-held PIC Programmer uses 9V PP3 battery or power supply
• Single button operation
• Load it once, program targets for ever
• Reload new programs as often as you need
• Holds program code indefinitely
• Low or High Voltage programming
• 10-way DIL and 6 x 1-way flying lead connectors included
• Program/Verify Flash or EEPROM or both
• Program and verify Configuration Bytes and User ID
• Existing EEPROM Data can be preserved
• Powers target device (up to 150mA) at 5V regardless of target voltage (so that Bulk Erase command always works)
• Dimensions: Metric- 106mm x 58mm x 25mm
• Dimensions: Imperial - 4.5 x 2.5 x 1 inches
• 256KB memory

PIC Microcontroller Support

PIC18F microcontrollers

• PIC18Fxxxx
• PIC18FxxJxx
• PIC18FxxKxx (9V VPP)
• Now supports PIC18FxxK80, PIC18F6xK22/8xK22 and PIC18F6xK90/8xK90
• Also supports LF versions

FREE Updates available for new device support.

PIC16F Microcontrollers

• PIC16F627
• PIC16F628
• PIC16F627A, PIC16F628A, PIC16F648A (HVP mode programming only if Reset pin is not reprogrammed as I/O)
• PIC16F631, PIC16F636, PIC16F639
• PIC16F677
• PIC16F68x, PIC16F690
• PIC16F7x
• PIC16F7x7
• PIC16F785
• PIC16F818
• PIC16F819
• PIC16F8x
• PIC16F8xA
• PIC16F87x
• PIC16F873A
• PIC16F874A
• PIC16F876A
• PIC16F877A
• PIC16F88x
• PIC16F91x
• PIC16F193x - HVP only
• PIC16F182x - HVP only

Notes:
Not all devices have LVP mode
PIC16F182x and PIC16F193x need 9V VPP. Old yellow box programmers only supply 12.5V VPP. New programmers support 9V VPP

Not supported

• PIC16F630
• PIC16F676
• PIC16F5x - will be supported
• PIC16F505

Hand Held PIC Programmer Options

Extra Hand Held PIC Programmers You only need one starter kit for as many Handheld PIC programmers as you require. This starter kit works with both old style Handheld programmers and the new style hand held programmer.

If you do not want to use the internal 9V PP3 battery, the power supply required is 9V with a 2.5mm Barrel connector. These are available on the shop.
9V International Power supply for use with this PIC handheld programmer.

PIC Programmer Overview

For an overview of our PIC Programmer range, please see PIC Programmer Overview in new window
