USB Handheld Serial EEPROM Programmer
 |
Order Code HH0120EE |
| Price: £95.36 | |
| In Stock | |

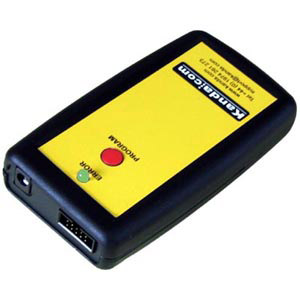

USB Hand Held Programmer for Serial EEPROMs
A very simple to use HandHeld Programmer that is loaded from the PC using the Starter Kit. Once the programmer is loaded with device information and data, then you just plug it into your target circuit and press the red button.
Programmer can power target device, so it can be used to program EEPROMs that are separate from other circuitry e.g. tags for QA purposes, or EEPROMs included in a circuit e.g. attached to a microcontroller
Serial EEPROM Programmer Features
- Compact, portable and easy to use
- One button operation
- Supplied with 9V PP3 battery
- Power supply connector (2.1mm, centre positive)
- Programmer can power target up to 150mA or draw power from target
- Supports low voltage and 5V serial EEPROMs
- Loaded from PC using simple Wizard Software and USB PC adapter supplied with starter kit - supports Windows 2000, XP, ME, Vista and 7, 32 and 64bit
- Erase, program, verify and lockbits supported
- Includes Microcontroller reset line to isolate MCUs in circuit
- Non-volatile memory keeps data even with flat battery
Serial EEPROM Support
All 24C I2C and 25C SPI family EEPROMs are supported. The serial EEPROM handheld Programmer has these device support features:
Important: Starter Kit
You need one Serial EEPROM Programmer Starter Kit to load as many programmers as you like from the PC. Once the serial eeprom programmer is loaded it is completely portable.
Physical
- Dimensions: 106 x 58 x 25mm, 4.5 x 2.5 x 1 inches
- Includes 9V PP3 battery
- Power supply requirements: 9V regulated, 2.1mm barrel connector, centre positive - see below for suitable power supply.
