Microchip CPLD ISP Cable
ATDH1150USB-K ISP Cable for CPLD
JTAG programming cable for Microchip ATF1502, ATF1504 and ATF1508 series CPLD devices.
This ISP programmer uses ATMISP 7 software...
Shipping to United States
Recorded Airmail: $15.00
Fedex Express: $29.00
Recorded Airmail: $15.00
Fedex Express: $29.00
Order Code
ATDH1150USB-K
ATDH1150USB-K
Price: $69.00
In Stock
Related Products
| Product Details |  |
ATDH1150USB-K ISP Cable for CPLD Programming
JTAG programming cable for Atmel, now Microchip, ATF1502, ATF1504 and ATF1508 series CPLD devices.
This Microchip ISP programmer uses ATMISP 7 software, which can be downloaded from PLD resources page on Microchip website
PLD Design Resources
Supports Windows Vista, 7, 8 and 10, 32 and 64-bit versions. Window XP version available for download.
Software features include:
- Supports JEDEC files
- Able to chain JTAG devices
- Support for SVF file output
Kit Contents
- Microchip ATDH1150USB Programmer
- USB cable
- 10-way programming lead
CPLD Support
- ATF1502AS
- ATF1502ASL
- ATF1502ASV
- ATF1502BE
- ATF1504AS
- ATF1504ASL
- ATF1504ASV
- ATF1504ASVL
- ATF1504BE
- ATF1508AS
- ATF1508ASL
- ATF1508ASV
- ATF1508ASVL
- ATF1508BE
- ATF1508RE
Works with Microchip ATF15xx-DK3 CPLD Development/Programmer board or with any CPLD board with a 10-way JTAG header. Other JTAG devices can be chained with these Atmel CPLDs and bypassed by ATMISP7 software so your hardware can have one JTAG interface. The programmer also has a 14-way JTAG output socket but only 10-way cable is supplied.

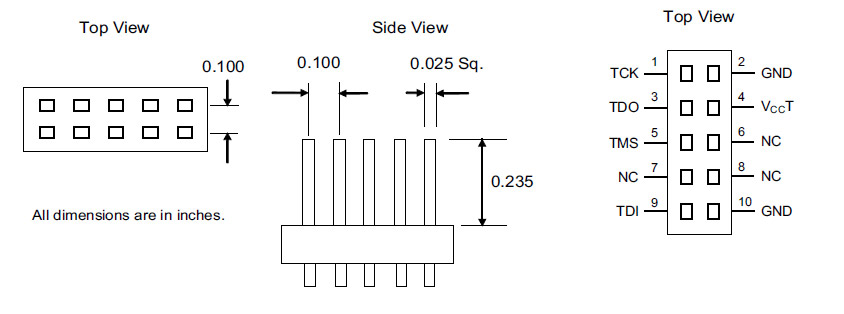

10-way JTAG connector

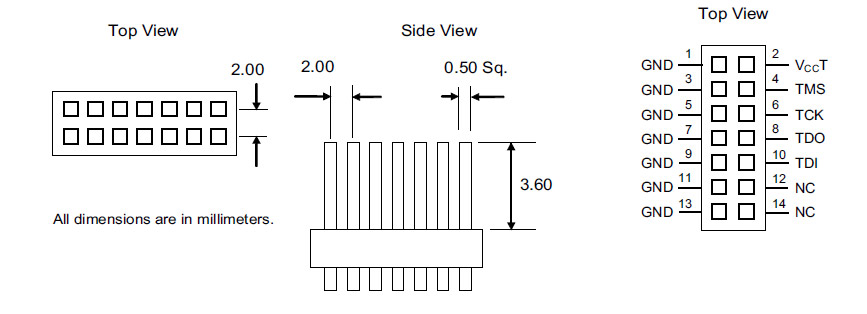

14-way JTAG connector
The programmer is powered by the USB port, USB cable included. It requires a reference voltage from the target circuit, between 1.65V and 5.5V at 150mA (max) of current.
This programmer is also available as part of the ATF15xx-DK3-U USB CPLD Development and Programming Kit
Documentation
This opens in a new window.
|
Ordering Information
| Ordering Information | Order Code: ATDH1150USB-K | Price: $69.00 |
| Shipping to United States: | Recorded airmail - $15.00 | Fedex Express - $29.00 |
|
Product Reviews
| Review Title: | ATF1500A and VHDL in UP1 board |
| Review: | I've successfully connected ATDH1150USB-K to the Altera University Programm board (also known as Altera UP1 boatd). ATDH1150USB-K header is pin-to-pin compatible with Altera ByteBlaster connector. I also replaced MAX7128S CPLD with Atmel ATF1508AS 84-pin PLCC. As a result I can programm ATF1500A using VHDL now (for FREE!). Altera Quartus II v13 WebEdition is VHDL compiler to produce POF file, POF2JED 4.5 and ATMISP v7 to programm CPLD. ATDH1150USB-K itself is not very complicated device, it's built aroud FTDI FT2232D http://dreamjam.co.uk/emuviews/old2011.php or http://www.techno-junk.org/ --> Old News --> 2011 TWI port is for programming Atmel AT17xxx FPGA configuration EEPROM. Good device, thank you, Kanda! |
| My Rating: |
|
| Would I recommend this product? | Yes |
| Found this useful: | 0 person found this review useful. - You must be logged in to access this feature, please click here to login |
| Report this post as offensive/malicious: | You must be logged in to access this feature, please click here to login |
| Review Title: | Atmel USB JTAG Blaster |
| Review: | I recieved it last week from Kanda but since I live in the Netherlands I paid a lot more than the 53 euro's for the programmer because of the shipping costs. Sadly Atmel products can't be bought in my country, nor in Belgium, France or even Germany. So the UK and USA are the only possible selling countries. I guess the Jtag programming functions perfectly but my only ATF1508 cpld (from Ebay) was probably JTAG blocked after already been used? So the other extra TWI and X ports are still unknown to me yet. And mostly because no brochure is enclosed that explains them. And the little cd didn't help me much further either. The programmer is housed in a sturdy little box. I myself think a more rectangular box would have looked much nicer but probably because of the extra ports it needed this square box. And only the LPT version could be optained or build much cheaper, so you have not much choice than to buy this original Atmel USB Blaster. But I like the Altera and Xilinx software ánd USB Blasters better. They are easier to comprehend. At least for beginners anyhow. |
| My Rating: |
|
| Would I recommend this product? | Yes |
| Found this useful: | 0 person found this review useful. - You must be logged in to access this feature, please click here to login |
| Report this post as offensive/malicious: | You must be logged in to access this feature, please click here to login |
You must be logged in to post product reviews, please click here to login
